Battery 20 at Rockaway Point, also known as Breezy Point, was not
located inside Fort Tilden, but at the tip of the Rockaway peninsula.
This gun battery protected the entrance to

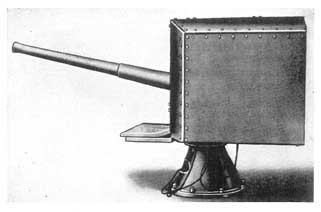

Jamaica Bay and consisted of two 3-inch guns Model 1902 mounted on
barbette carriages Model 1905.
The Coincidence Range Finder (CRF) and plotting room casemate still
exists as well as the two gun mounts. The CRF - plotting room is now
undermined and standing on it's pilings and was used after the war as a
USCG radio and/or light beacon facility of some type.
This is a rear view of the structure at the tip of Breezy Point,
believed to be the Coincidence Range Finder (CRF) Station for Battery 20
(twin 3" guns). The omni-directional observation slit for the CRF is
visible on the top portion, as well as a lower observation slit for
another instrument. Both were covered up after the war.

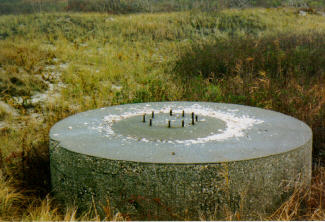

Located on flanking sides of the orange CRF building at the tip of
Breezy Point, these two of these concrete mounts are believed to have
been bases of the two Model 1902 3" guns mounted on a barbette carriages
Model 1905. Records indicate that Battery 20 was in place from 1942 to
1946
One of the gun mounts is buried by the growing dune, but the other is clearly visible.
Do you have any photos or plans for this structure and the battery? Click on "Help Us" down below, and send us an e-mail!
